ZH01

ZH1

  • Products infeed belt
  • Products dividing low friction plate Side product stop
  • Head products looser.Product divider.
  • Single products charriot translator.
  • Product inserter inside case
  • Manual size parts change
  • Safety guardings made of policarbonate.
  • Product separation speed: 20 separation/minute
  • Max separation side: 1200 mm.
  • Product insertion speed: 15 introduction/minute















ZH02

ZH02

  • Laying products infeed conveyor
  • Electro-mechanic product divider with rising of 80 separations/minuteS
  • Products stacker device with single axis Synchro – 55 stacks/minute.
  • 1st Product translator for the extraction of the bundle of products from the stacker to transferring area. Longitudinal Transfer.
  • 2nd Product Translator for the bundle insertion on the elevator/tumbler.
  • Product elevator, product elevation device on introduction plate.
  • Product inserter inside case.
  • Manual size parts change
  • Safety guardings made of policarbonate.
  • Product separation speed: 80 separation/minute
  • Stacking speed: 55/80 layers/minute
  • Product insertion speed: 15 introduction/minute

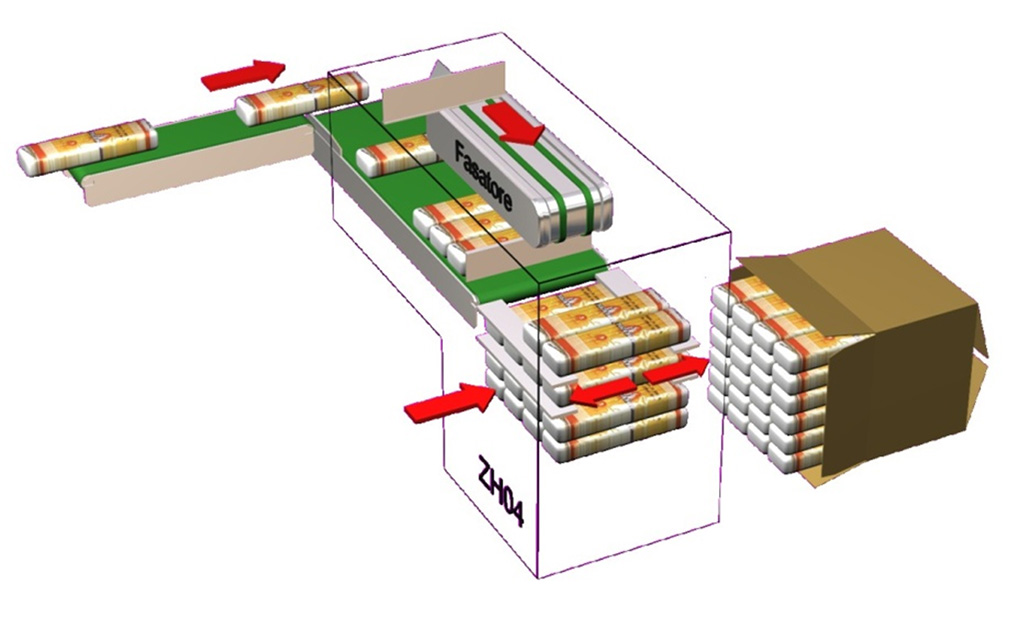

ZH04

ZH04

  • Product infeed conveyor in plane composed with:
  • Phasing group with fingers to define the product type
  • Pre-layer forming system with double pneumatica trap
  • Layer forming descenting electrical group
  • Insertion product to the box

















ZH11

ZH11

  • Transport product entry flat (optional vertically)
  • Product elevator group: 30 elevations / min.
  • Double trap system for product retention
  • Product introduction in cardboard
  • Manual format exchange (optional automatic)
  • Polycarbonate safety protection.
  • Product separations speed: 80 separations / min.
  • Stratification speed: 55/80 layers / min.
